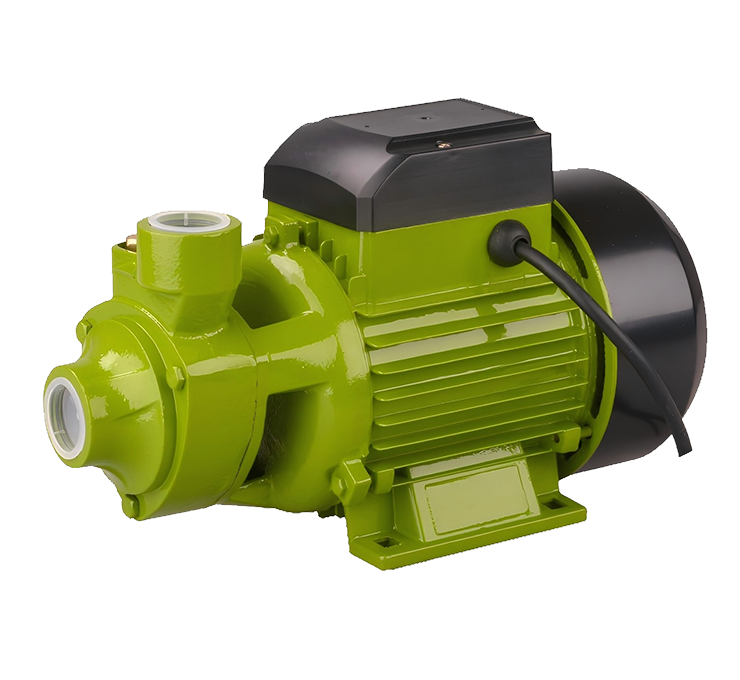

QB SERIES
Product Application
Watering the garden, pressurizing the home, and lifting water from shallow wells
China Stock Code
603617
Menu
Features
Conditions of Use
Medium temperature: 2-50° C
Ambient temperature: 0-40° C
PH value:6.5-8.5
General clear water without sand or other solid particles
Model Instruction
QB SERIES
QB
QB garden pump
60
Impeller diameter (mm)

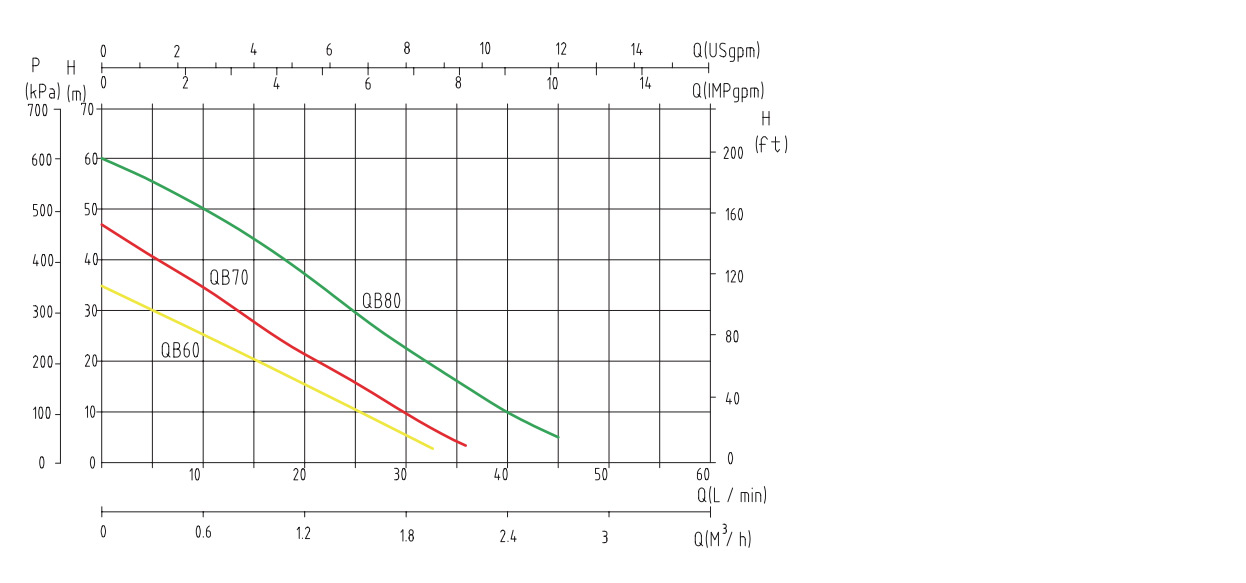

Performance Curves
Performance Data
| Model | Power | Maximum suction lift | Entrance exit paths | Performance | ||||||||||
| Flow rate | m³/h | 0 | 0.42 | 0.84 | 1.26 | 1.68 | 2.1 | 2.52 | 2.94 | |||||
| KW | HP | m | inch | Flow rate | l/h | 0 | 7 | 14 | 21 | 28 | 35 | 42 | 49 | |
| QB60 | 0.37 | 0.5 | 8 | 1x1 | Head | m | 35 | 29 | 20 | 14 | 10 | 0 | / | / |
| QB70 | 0.55 | 0.75 | 8 | 1x1 | 48 | 39 | 31 | 21 | 11 | 4 | 0 | / | ||
| QB80 | 0.75 | 1 | 8 | 1x1 | 60 | 54 | 44 | 33 | 26 | 14 | 6 | 0 | ||

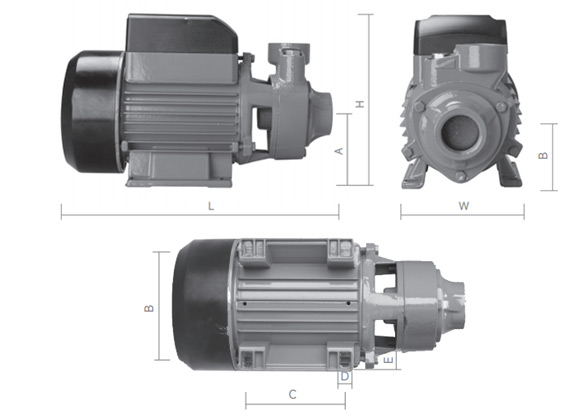

Dimensions Size
| Model | Dimensions Size (cm) | Installation Dimensions（mm) | Weight (Kg) | |||||
| L | W | H | A | B | C | D*E | ||
| QB60 | 26 | 12 | 15 | 65 | 95 | 82 | 8.5*12 | 4.6 |
| QB70 | 30 | 14 | 18 | 73 | 106 | 90 | 7*9.5 | 8.8 |
| QB80 | 30 | 14 | 18 | 73 | 106 | 90 | 7*9.5 | 9.5 |
