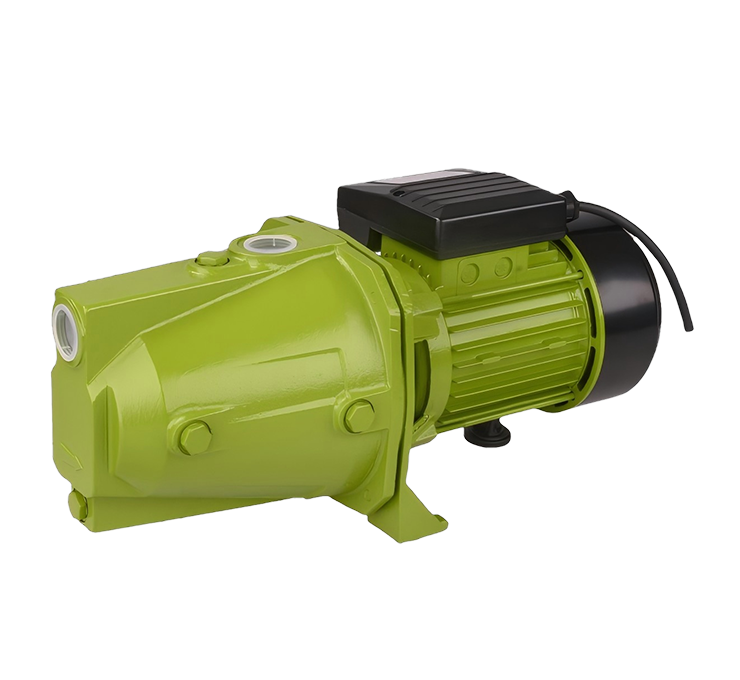

JET SERIES
Product Application
Watering the garden, pressurizing the home, and lifting water from shallow wells
Features
Conditions of Use
Medium temperature: 2-50° C
Ambient temperature: 0-40° C
PH value:6.5-8.5
Generally, the volume content of clean water or solid should not exceed 0.1% clear water
Model Instruction
JET SERIES
JET
Ejector pump
60
Rated power (rated power divided by 10)(W)
P
Supplementary identification
Performance Curves
Performance Data
| Model | Power | Maximum suction lift | Entrance exit paths | Performance | |||||||||||
| Flow rate | m³/h | 0 | 0.42 | 0.84 | 1.26 | 1.68 | 2.1 | 2.52 | 2.94 | 3.36 | |||||
| KW | HP | m | inch | Flow rate | l/h | 0 | 7 | 14 | 21 | 28 | 35 | 42 | 49 | 56 | |
| JET-60P | 0.6 | 0.8 | 8 | 1*1 | Head | m | 38 | 36 | 30 | 26 | 22 | 17.5 | 9 | 3 | 0 |
| JET-80P | 0.8 | 1.1 | 8 | 1*1 | 45 | 42 | 35 | 30 | 25 | 19 | 15 | 6 | 0 | ||
| JET-100P | 1 | 1.35 | 8 | 1*1 | 50 | 47 | 42 | 35 | 30 | 25 | 19 | 8 | 0 | ||

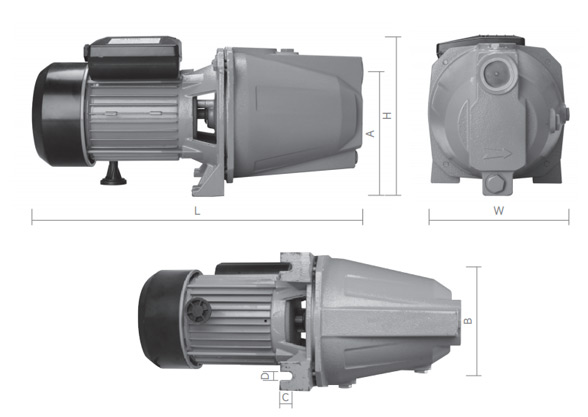

Dimensions Size
| Model | Dimensions Size (cm) | Installation Dimensions（mm) | Weight (Kg) | ||||
| L | W | H | A | B | C*D | ||
| JET-60P | 43.5 | 19 | 20 | 153 | 136 | 16*9.5 | 12.7 |
| JET-80P | 43.5 | 19 | 20 | 153 | 136 | 16*9.5 | 13.5 |
| JET-100P | 43.5 | 19 | 20 | 153 | 136 | 16*9.5 | 14 |
