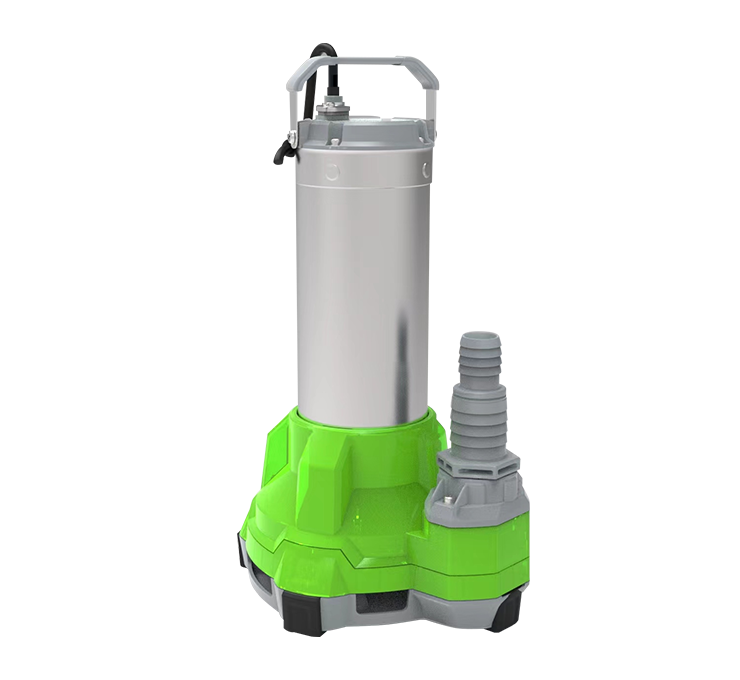

WQ SERIES
Product Application
River water intaking,agroforestry irrigation,drainage,road traffic construction drainage
China Stock Code
603617
Menu
Features
Conditions of Use
Maximum temperature of medium: 40° C
Ambient temperature: 0-40° C
PH value:4-10
submersible depth.: ≤ 5m
The solid volume content of slurry,mortar and domestic wastewater shall not exceed 0.15%of clean sewage
Model Instruction
WQ SERIES
WQ
Sewage sewage submersible pump
10
Rated flow (m3h)
11
Rated lift (m)
0.75
Rated power (KW)
P
Plastic housing (P)
M(T)
Single-phase M, three-phase T

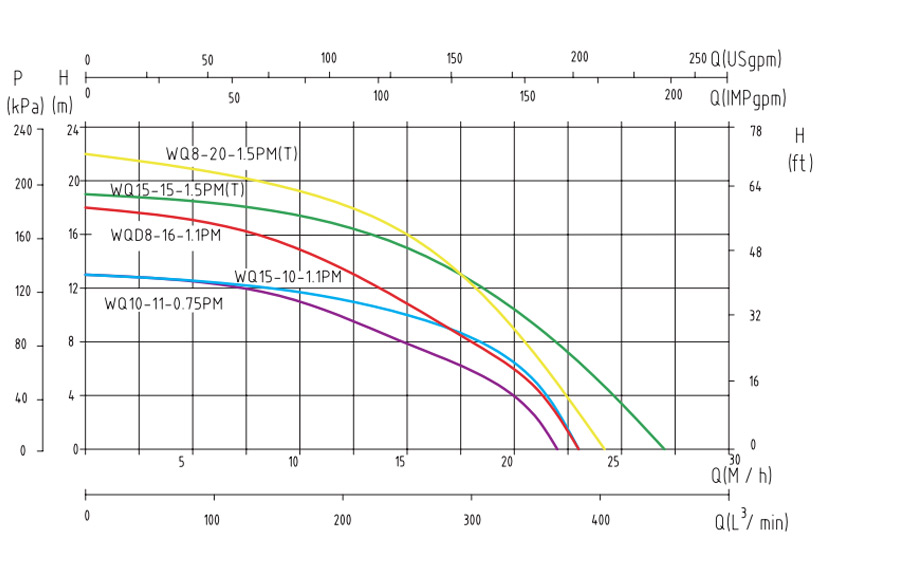

Performance Curves
Performance Data
| Model | Power | Outlet | Performance | |||||||||||
| Flow rate | m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 27 | ||||
| KW | HP | mm | Flow rate | l/h | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 450 | |
| WQ10-11-0.75PM | 0.75 | 1 | 50 | Head | m | 13 | 12.5 | 12 | 11 | 10 | 7 | 5 | / | / |
| WQ15-10-1.1PM | 1.1 | 1.5 | 50 | 13 | 12.5 | 12 | 1.5 | 11 | 10 | 7 | / | / | ||
| WQ8-16-1.1PM | 1.1 | 1.5 | 50 | 18 | 17.5 | 17 | 15 | 14 | 11 | 8 | / | / | ||
| WQ15-15-1.5PM | 1.5 | 2 | 50 | 19 | 18.5 | 18 | 17 | 16 | 15 | 12.5 | 5 | 0.5 | ||
| WQ18-20-1.5PM | 1.5 | 2 | 50 | 22 | 21.5 | 21 | 19.5 | 18 | 16 | 12 | 0.5 | / | ||
| WQ15-15-1.5PT | 1.5 | 2 | 50 | 19 | 18.5 | 18 | 17 | 16 | 15 | 12.5 | 5 | 0.5 | ||
| WQ18-20-1.5PT | 1.5 | 2 | 50 | 22 | 21.5 | 21 | 19.5 | 18 | 16 | 12 | 0.5 | / | ||

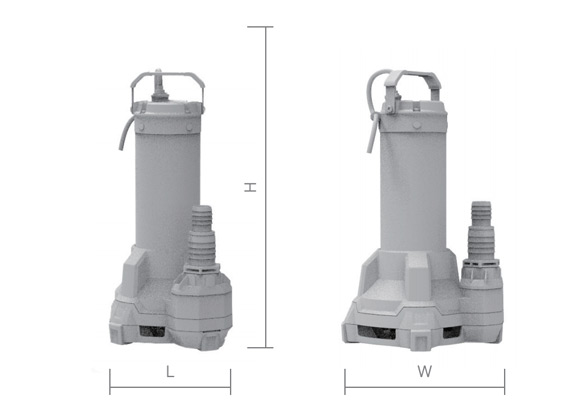

Dimensions Size
| Model | Dimensions Size (cm) | Weight (Kg) | ||
| L | W | H | ||
| WQ10-11-0.75PM | 26.8 | 23.9 | 45 | 1.6 |
| WQ15-10-1.1PM | 26.8 | 23.9 | 46.5 | 13.2 |
| WQ8-16-1.1PM | 26.8 | 23.9 | 46.5 | 13.2 |
| WQ15-15-1.5PM | 26.8 | 23.9 | 48.5 | 14.9 |
| WQ18-20-1.5PM | 26.8 | 23.9 | 50.5 | 16.9 |
| WQ15-15-1.5PT | 26.8 | 23.9 | 48.5 | 15.4 |
| WQ18-20-1.5PT | 26.8 | 23.9 | 50.5 | 17.4 |
