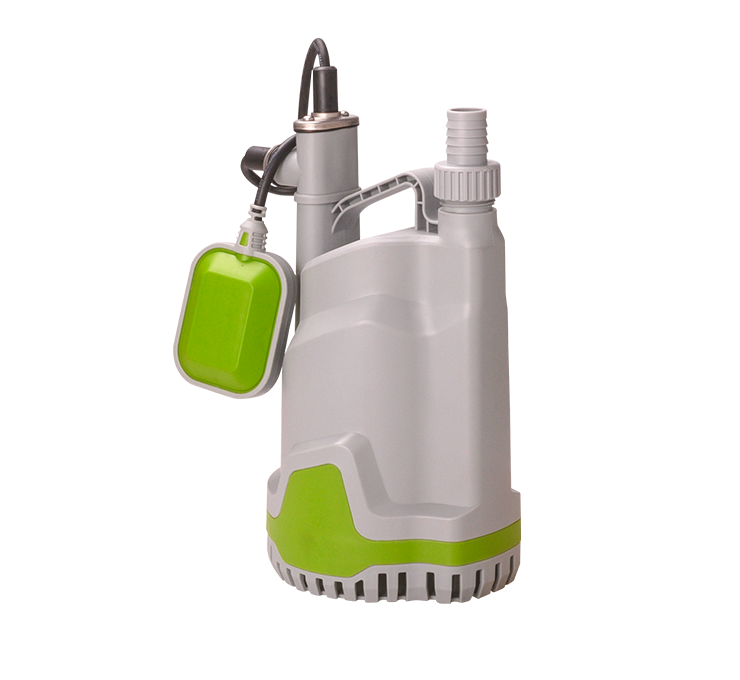

CSP SERIES
Product Application
Household fish ponds, fountain circulation, clean water drainage systems, Pumping out rainwater or stagnantwater without solid particles.
Features
Conditions of Use
Medium temperature: 5-35°C
Ambient temperature:0-40°C
PH value: 6.5-8.5
submersible depth:<7m
General clean water with solid volume content not exceeding 0.1%
Model Instruction
CSP SERIES
CSP
Clear water submersible pump
80
Rated power (W)
PF
Pump Characteristics:Plastic pump casing/with float switch
M
Single phase power supply

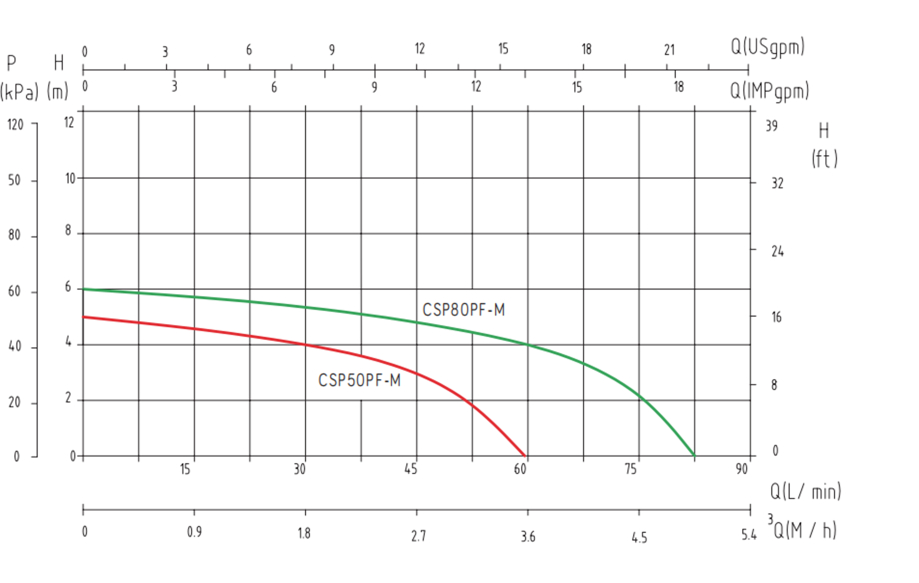

Performance Curves
Performance Data
| Model | Power | Outlet | Performance | |||||||||||
| Flow rate | m³/h | 0 | 1.2 | 24 | 3.6 | 4.8 | 5.4 | / | / | / | ||||
| KW | HP | mm | Flow rate | l/h | 0 | 20 | 40 | 60 | 80 | 90 | / | / | / | |
| CSP80PF-M | 0.08 | 0.1 | 25.4 | Head | m | 0 | 1.2 | 24 | 3.6 | 4.8 | 5.4 | / | / | / |
| CSP50PF-M | 0.05 | 0.07 | 25.4 | 0 | 20 | 40 | 60 | 80 | 90 | / | / | / | ||

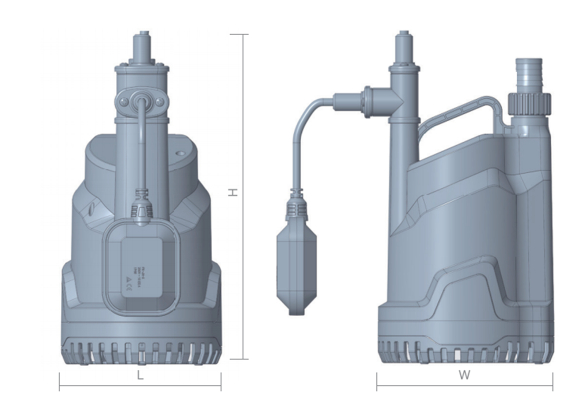

Dimensions Size
| Model | Dimensions Size (cm) | Weight (Kg) | ||
| L | W | H | ||
| CSP80PF-M | 14.6 | 16.2 | 30 | 3.72 |
| CSP80PF-M | 14.6 | 16.2 | 30 | 3.47 |
