WP SERIES
Product Application
Flood control and drainage, agroforestry irrigation, drainage, pond pumping
Features
Conditions of Use
Fuel: 92# unleaded petrol
Medium temperature: 2-50° C
Ambient temperature: -10-50° C
PH value: 6.5-8.5
Generally, the volume content of clean water or solid should not exceed 0.1% clear water
Model Instruction
WP SERIES
WP
Gasoline engine water pump
30
Pump inlet diameter (10 times the pump inlet diameter Integer value representation) (inch)

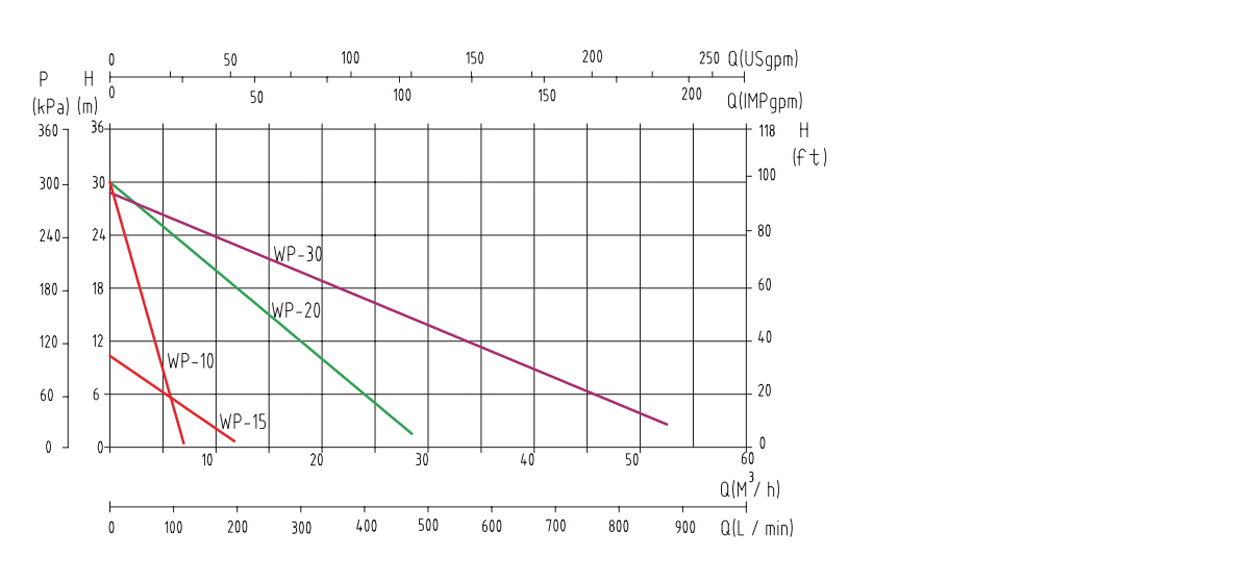

Performance Curves
Performance Data
| Model | Oil capacity | power | flow rate | Head | Suction lift | Engine model | Bore*Stroke | Fuel type | Lubricating oil type | Startup mode | Inlet and outlet diameters |
| L | KW | m3/h | m | m | mm | inch | |||||
| WP-30 | 0.6 | 5.2 | 58 | 28 | 8 | 170F | 70*55 single cylinder, air cooled, four-stroke OHV | 92 unleaded gasoline | 4 stroke | manual | G3" |
| WP-20 | 0.6 | 4.8 | 30 | 30 | 8 | 168F | 68*54 single cylinder, air cooled, four-stroke OHV | 92 unleaded gasoline | 4 stroke | manual | G2" |
| WP-15 | 0.36 | 1.8 | 12 | 10 | 5 | 154F | 54*46 single cylinder, air cooled, four-stroke OHV | 92 unleaded gasoline | 4 stroke | manual | G1.5" |
| WP-10 |
Inorganic fuel tank 1.2L gasoline tank |
1.1 | 6.5 | 30 | 8 | 1E40F-5 | 40*34 single cylinder, air cooled, two stroke | Inorganic oil tank, mixing ratio of gasoline and engine oil is 25:1. | 2 stroke | manual | G1" |

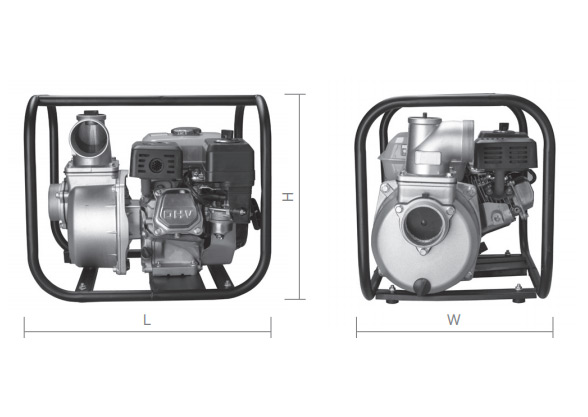

Dimensions Size
| Model | Dimensions Size (cm) | Weight (Kg) | ||
| L | W | H | ||
| WP-30 | 49 | 37 | 43 | 22 |
| WP-20 | 47 | 37.5 | 39 | 19 |
| WP-15 | 34.5 | 29.5 | 35 | 9.5 |
| WP-10 | 39 | 29.5 | 34 | 7 |
