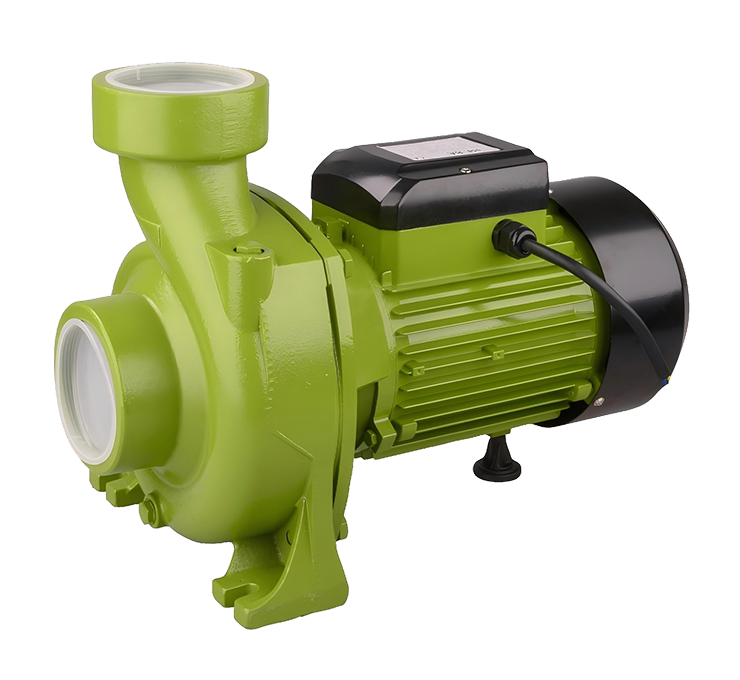

HF SERIES
Product Application
Agroforestry irrigation, rivers, reservoirs, water tanks to deliver water
China Stock Code
603617
Menu
Features
Conditions of Use
Medium temperature: 2-50° C
Ambient temperature: 0-40° C
PH value: 6.5-8.5
Generally, the volume content of clean water or solid should not exceed 0.1% clear water
Model Instruction
HF SERIES
HF
Centrifugal Pump
6A
Product Category

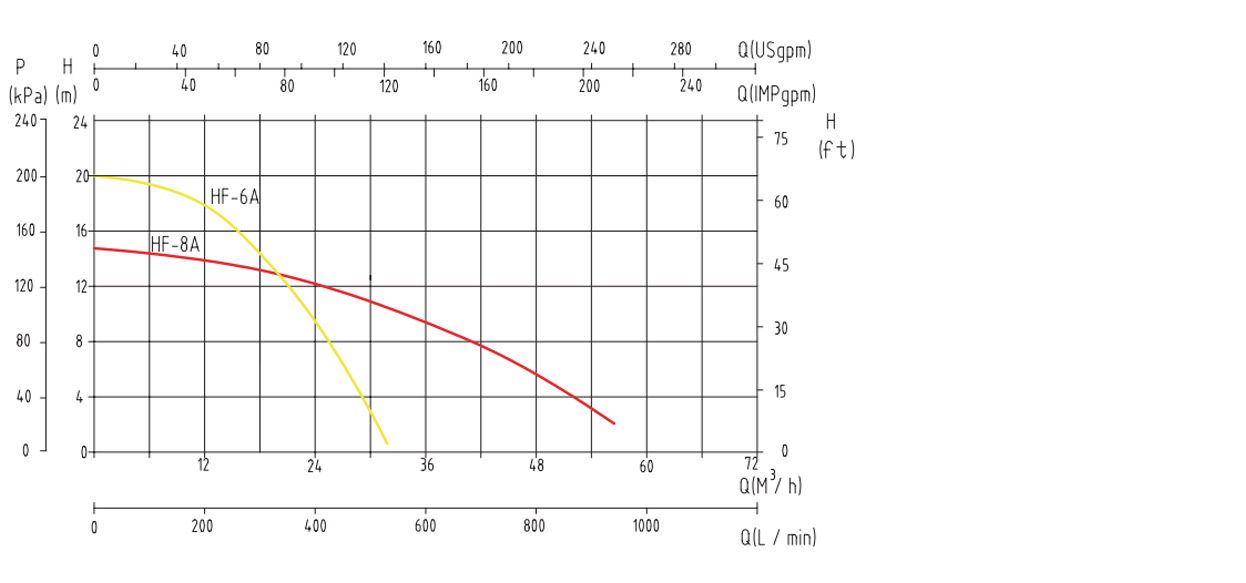

Performance Curves
Performance Data
| Model | Power | Entrance exit paths | Performance | |||||||||||
| Flow rate | m³/h | 0 | 7.5 | 15 | 22.5 | 30 | 37.5 | 45 | 52.5 | 60 | ||||
| KW | HP | inch | Flow rate | l/h | 0 | 125 | 250 | 375 | 500 | 625 | 750 | 875 | 1000 | |
| HF-6A | 1.1 | 1.5 | 2*2 | Head | m | 20 | 19 | 16 | 10.5 | 2.5 | / | / | / | / |
| HF-8A | 2.2 | 3 | 3*3 | 15 | 14.2 | 13.5 | 12.5 | 10.5 | 8.5 | 6.4 | 3 | 0 | ||

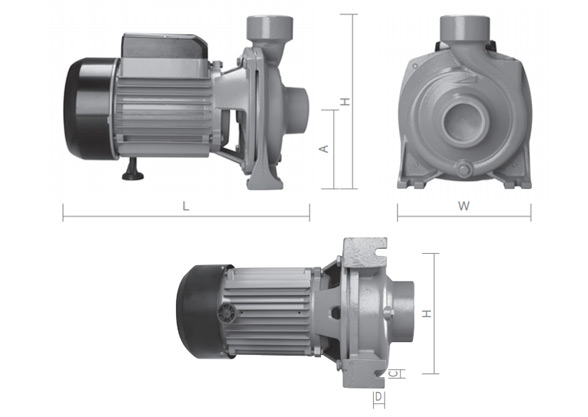

Dimensions Size
| Model | Dimensions Size (cm) | Installation Dimensions（mm) | Weight (Kg) | ||||
| L | W | H | A | B | C*D | ||
| HF-6A | 37.5 | 21 | 26.5 | 110 | 161.5 | 9*17.5 | 20.5 |
| HF-8A | 43.5 | 24.5 | 31 | 118 | 188 | 11*19 | 27.5 |
