CPS SERIES
Product Application
Food chemical industry, domestic sewage, household pressurization
Features
Conditions of Use
Medium temperature: 2-50° C
Ambient temperature: 0-40° C
PH value: 4-10
No chemical corrosion and no abrasive particles of chemical liquid or water
Model Instruction
CPS SERIES
CPS

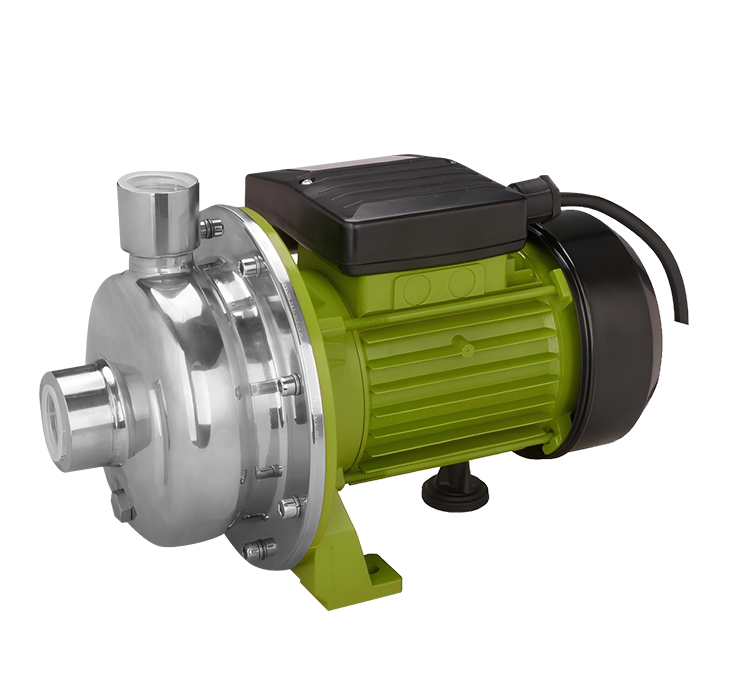

Stainless steel centrifugal garden pump
130
Impeller diameter (mm)

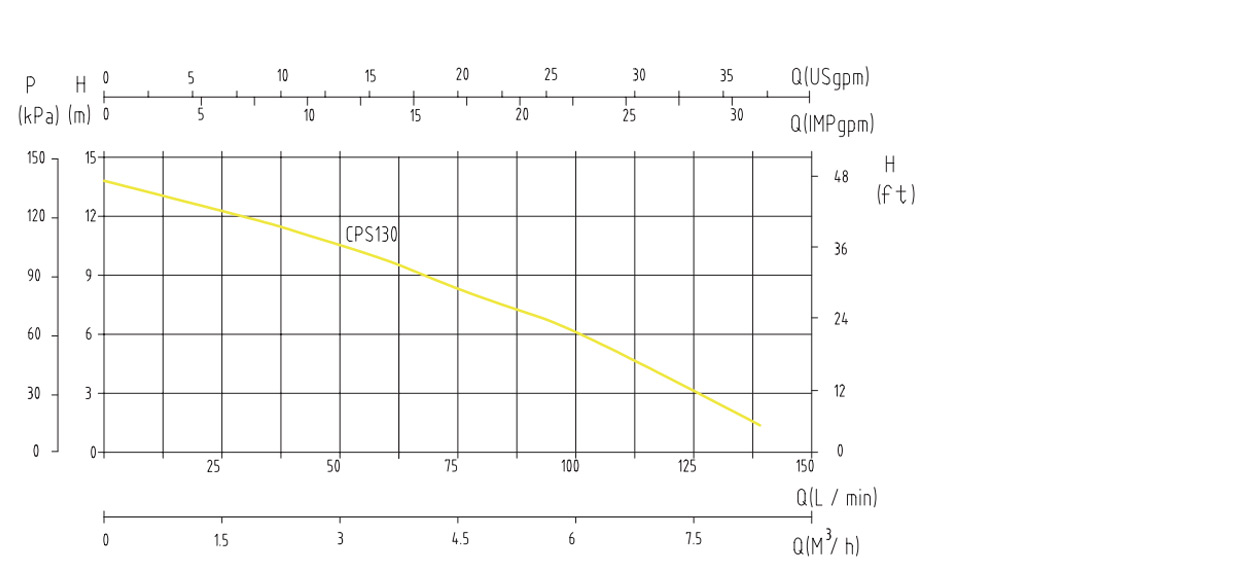

Performance Curves
Performance Data
| Model | Power | Entrance exit paths | Performance | |||||||||
| Flow rate | m³/h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | ||||
| KW | HP | inch | Flow rate | l/h | 0 | 25 | 50 | 75 | 100 | 125 | 150 | |
| CPS130 | 0.37 | 0.5 | 1.25*1.25 | Head | m | 14 | 12 | 10.5 | 8 | 6 | 3.5 | 0 |

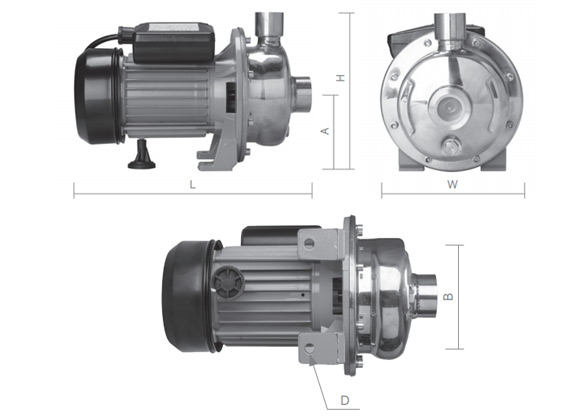

Dimensions Size
| Model | Dimensions Size (cm) | Installation Dimensions（mm) | Weight (Kg) | ||||
| L | W | H | A | B | D | ||
| CPS130 | 29.5 | 17.5 | 19 | 84 | 100 | 9 | 6 |
