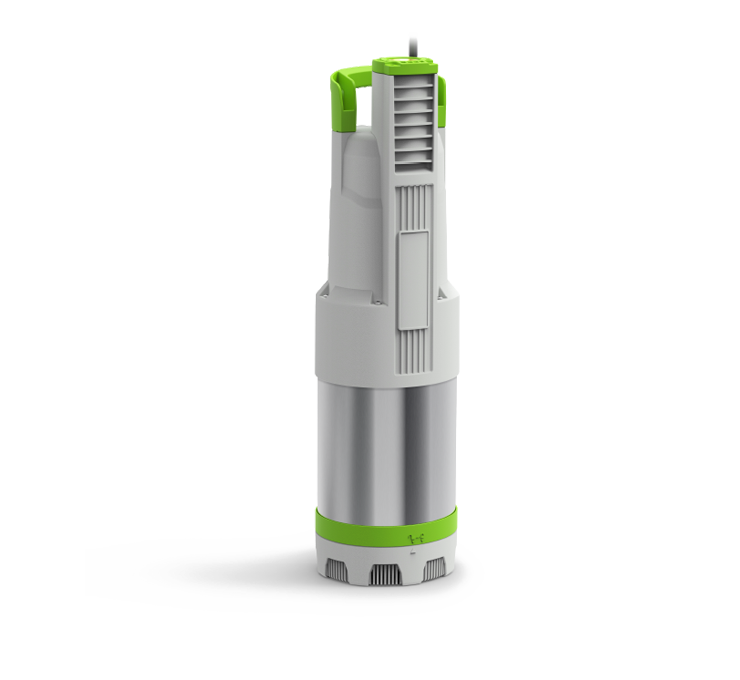

| Product model | 4MSP1000S1-A |
| Applicable scene | Sprinkling or supplying |
| Input power | 1000W |

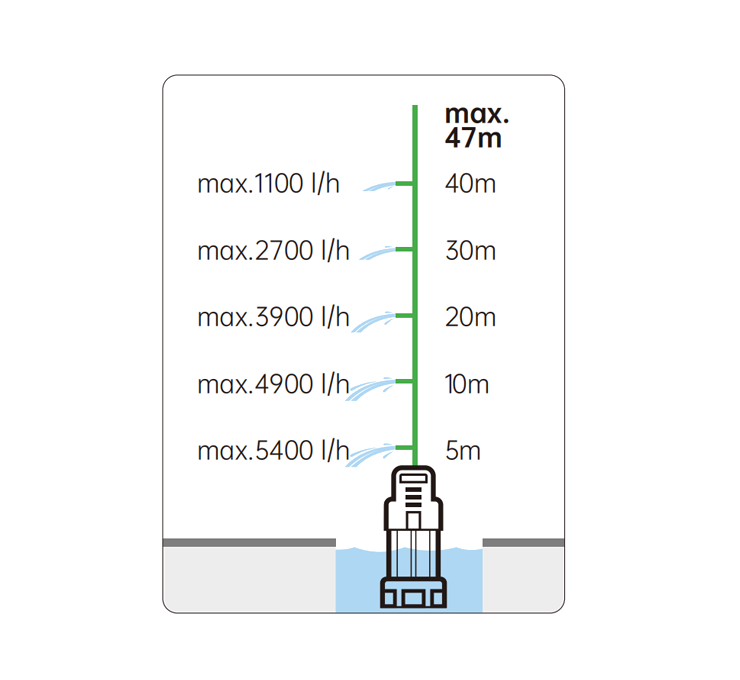

| Maximum flow rate | 6000 l/h |
| Maximum head/pressure | 47m/4.7bar |
| Maximum passing particles | 1mm |
| Maximum allowable diving depth | 17m |
| Power cord | 20m (H07 RN-F) |
| Outlet size | G1" |
| Output connector | 25mm(1") |
| Lifting rope length | 20m |
| Protection level | IPX8 |
|
Automatic function (start and stop,dry operation protection) |
Electronic induction |
|
Water inlet can be connected to suspended suction port |
Applicable |
| Built-in one-way valve | Applicable |
| Product Weight | 10.8 kg |
| Product shape size | 16×16×55.5cm |
