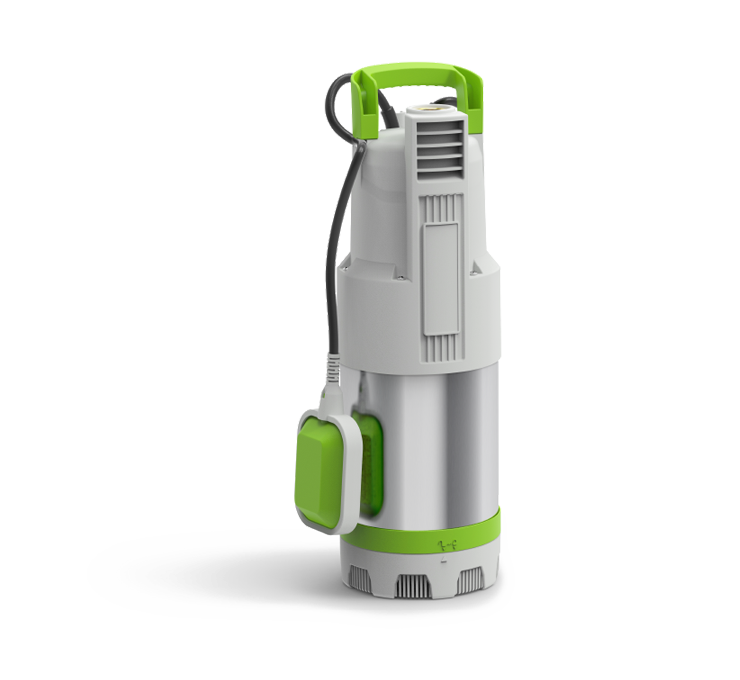

| Product model | 4MSP1100S1 |
| Applicable scene | Sprinkling |
| Input power | 1100 W |
| Maximum flow rate | 6500Vh |
| Maximum head/pressure | 47m/4.7bar |
| Maximum passing particles | 1mm |
| Maximum allowable diving depth | 12m |
| Power cord | 15m(H07 RN-F) |
| Outlet size | G1" |
| Output connector | 25mm(1") |
| Lifting rope length | 15m |
| Protection level | IPX8 |
|
Automatic function (start and stop,dry operation protection) |
Float switch |
|
Water inlet can be connected to suspended suction port |
Applicable |
| Built-in one-way valve | Not applicable |
| Product Weight | 10.5 kg |
| Product shape size | 16×16×49cm |
