| Product model | CSP90P1-DC |
| Application scenario | Draining |
| Input power | 90 W |
| Maximum discharge | 4000 l/h |

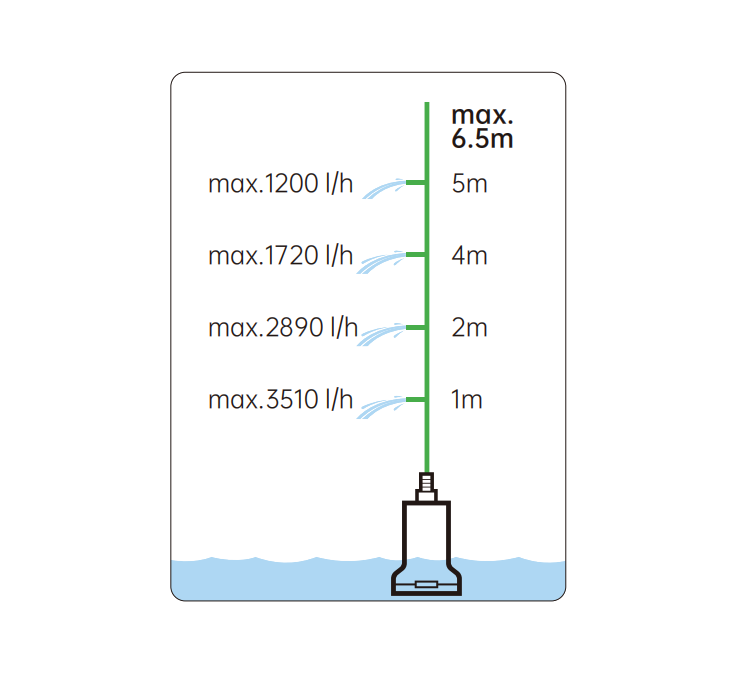

| Maximum head/pressure | 6.5m/0.65bar |
| Maximum passing particle | 15mm |
| Maximum permissible diving depth | 2.5m |
| Minimum remaining water level | 1mm |
| Minimum starting water level | 10mm |
|
Maximum battery continuous wodrking time |
40 min(18V/4AH) |
| Class of protection | IPX8 |
| Outlet size | G1" |
| Output connector |
19mm(3/4") 3/8"male quick connector |
| Timing control operation | Applicable |
| Adjust the water inlet clearance of the base |
1mm/15mm manually adjustable |
| Built-in filter cotton and washable | Not applicable |
|
Product Weight (battery pack, charger) |
2.79 kg |
|
Product shape size |
12.5×12×20.0cm |
|
Battery box size |
24×13.5×12cm |
