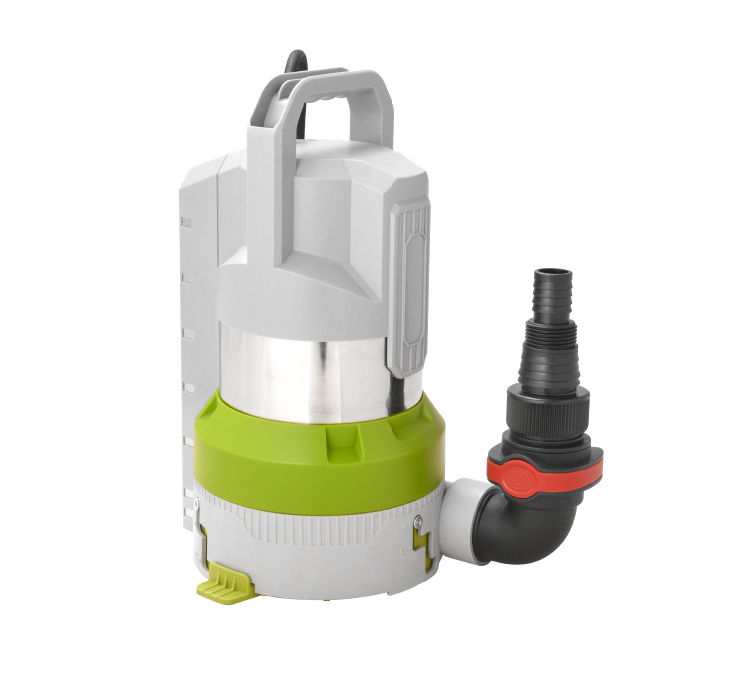

| Product model | SP550P1 |
| Applicable scene | Draining |
| Input power | 850 W |
| Maximum flow rate | 20000 l/h |

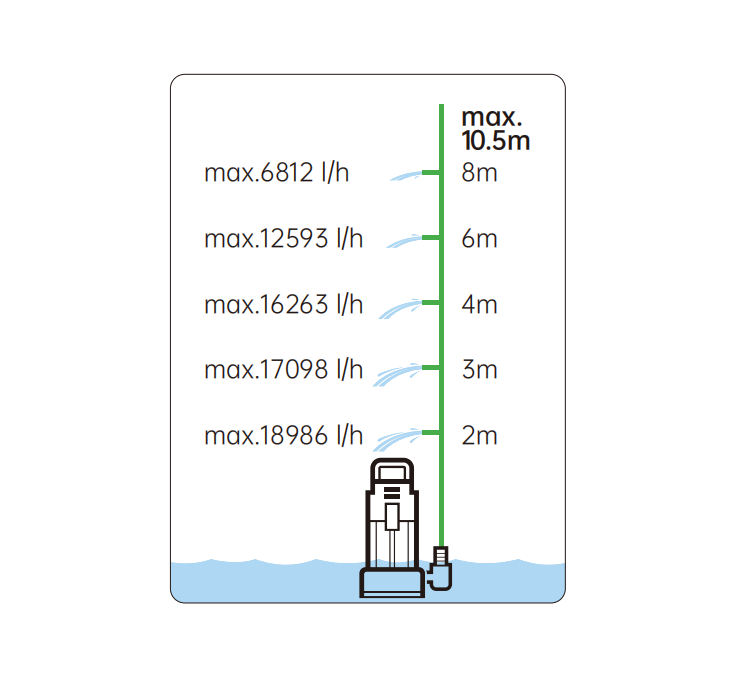

| Maximum head/pressure | 10,5m/1.05bar |
| Maximum passing particles | 35mm |
| Maximum allowable diving depth | 7m |
| Minimum residual water level | 1mm |
| Minimum starting water level | 10mm |
| Protection level | IPX8 |
| Power cord | 10m(H05 RN-F) |
| Outlet size | G1-1/2" |
| Output connector | 25mm(1")38mm(1 1/2")G1" |
|
Automatic function (start and stop, dry running protection) |
Float switch |
|
Base water inlet clearance adjustment |
1mm/35mm manually adjustable |
|
Extension connector can be quickly connected |
Applicable |
|
Extension connector is equipped with a one-way valve |
Applicable |
|
Stainless steel cylinder |
Applicable |
| Product Weight | 6.35 kg |
| Product dimensions | 20.9×20.8×32.2cm |
