| Product model | CSP550S1 |
| Applicable scene | Draining |
| Input power | 550W |
| Maximum flow rate | 13000 l/h |

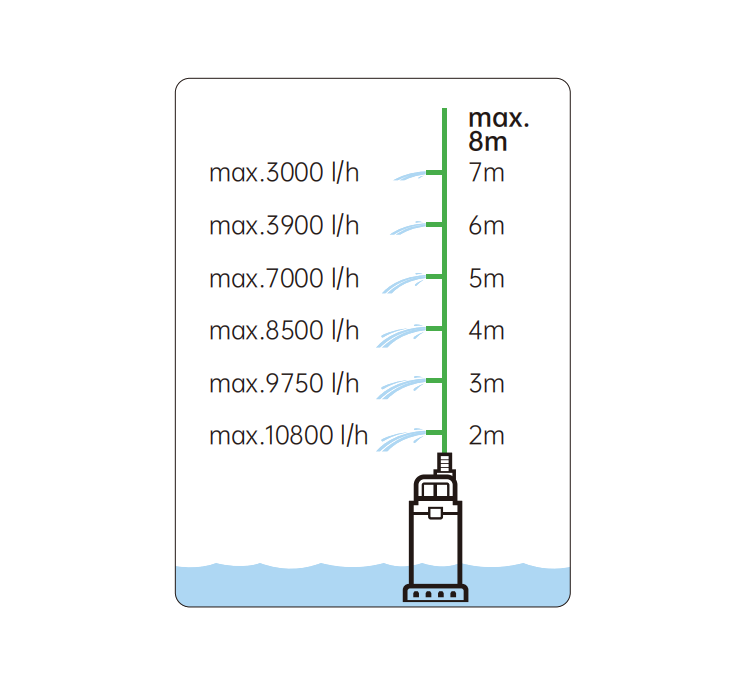

| Maximum head/pressure | 8m/0.8bar |
| Maximum passing particles | 5mm |
| Maximum allowable diving depth | 7m |
| Minimum residual water level | 1mm |
| Minimum starting water level | 5mm |
| Protection level | IPX8 |
| Power cord | 10m (H05 RN-F) |
| Outlet size | G1-1/4" |
| Output connector size | 25mm(1")32mm(1 1/4")G1" |
|
Automatic function (start and stop, dry running protection) |
Float switch |
| Base water inlet clearance adjustment | 1mm-5mm manual adjustment |
|
Extension connector can be quickly connected |
Not Applicable |
|
Extension connector is equipped with a one-way valve |
Not Applicable |
| Product Weight | 4.52 kg |
| Product shape size | 14.8×14.8×29cm |
