Recycling and filtering water for all types and sizes pool(small to medium)； Ideal for new and standard pool pump replacement； Residential pools&filtration system.

Features

Quite running single stage pool pump.

Integrated pre-filter and see-thru lid for easy inspection.

Built-in thermal protector assure long lifetime.

Designed for use in swimming pool filtration systems.

Easy installation even in existing filter circuits.

Every pump is performance tested before leaving factory.

Water proof level IPX5.

Medium water temperature:40℃.

Conditions of Use

Model Instruction

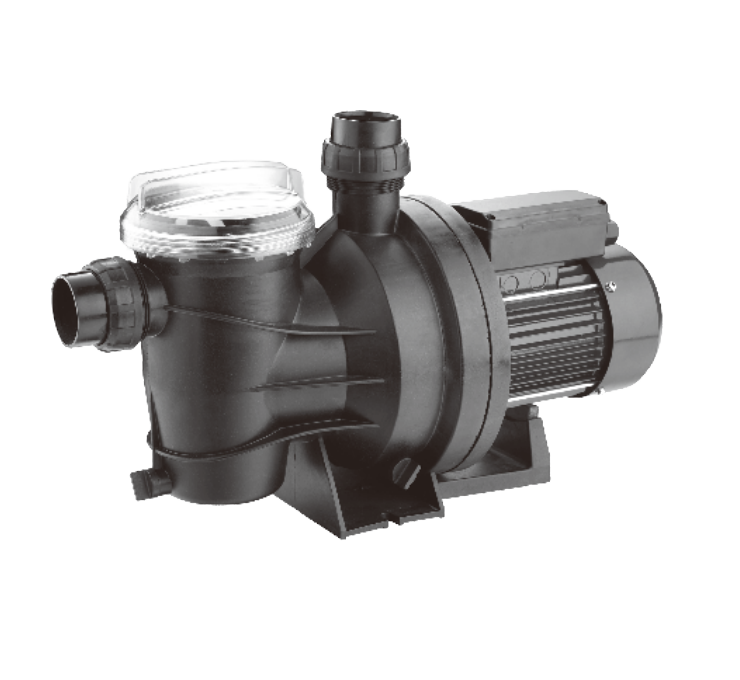

Swimming Pool Pump

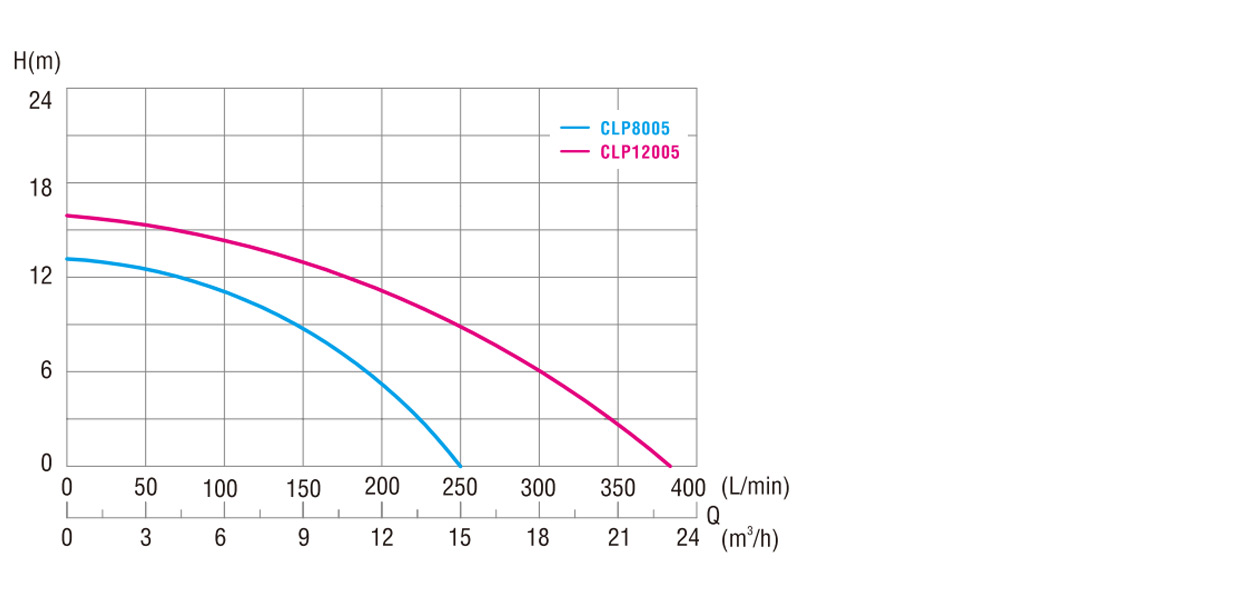

Performance Curves

Performance Data

Model	Volts/Hz	Input Power	Amps	Max.Flow Rate	Max.Head	Connection	Pool Size	Dimensions Product Weight
CLP8005	230V/50Hz	800W	3.4A	15m³/h	13.5m	1^1/2"	≈50 m³	L51.1cm-W23.8cm-H30.1cm/9.8kg
CLP12005	230V/50Hz	1200W	5.2A	23m³/h	16m	1^1/2"	≈100 m³	L51.1cm-W23.8cm-H30.1cm/12kg

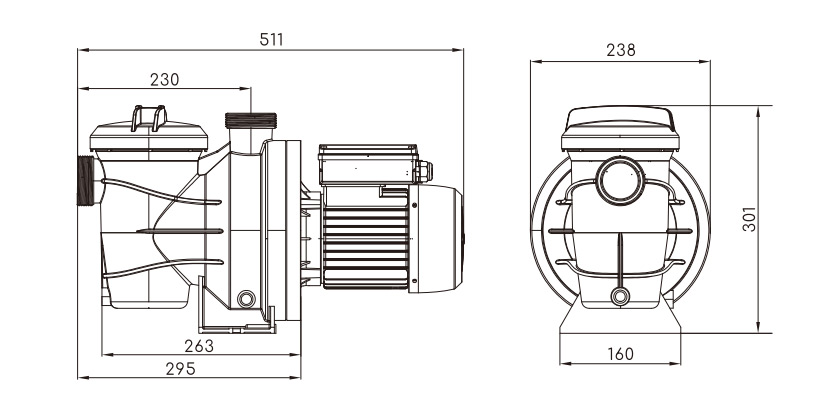

Dimensions Size

Product Brochure

Click to download for more product related information

Download
