Home Products Swimming pool

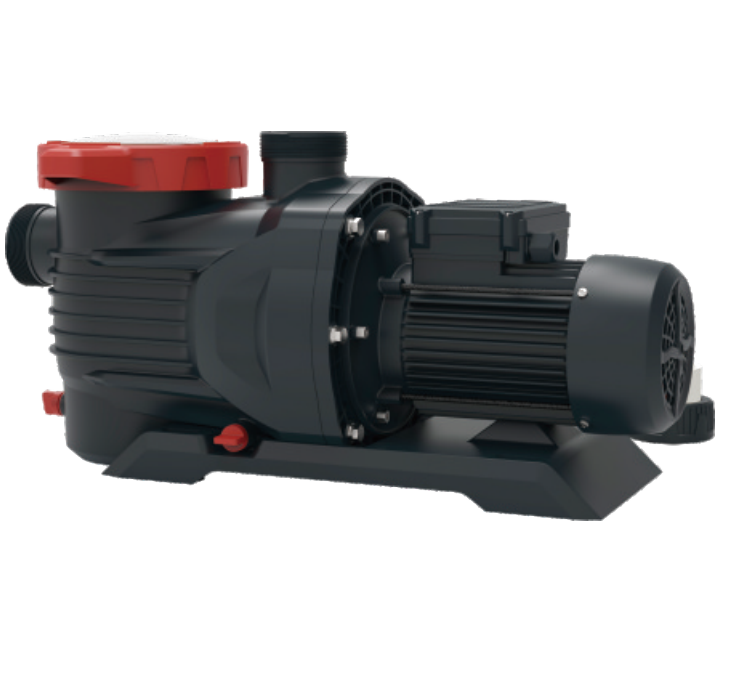

Pool &Filter Pump Eco Series
Product Application
Residential pools spas； Recycling and filtering water for domestic pools.

Features

Efficient self-priming swimming pool filter pump for effective water circulation.
Self-priming pool pump range emits power between 0.76KW and 2.2KW.
Easy installation,even in existing filter circuits.
Designed for use in swimming pool filtration systems.
Integrated pre-filter removes coarse dirt and see-thru lid for quick inspection and tool-free service.
Extreme water flow and cool &silent running.
Built-in thermal protector assure long lifetime.
Every pump is performance tested before leaving factory.
Medium water temperature:40℃.
Water proof level IPX5.

Conditions of Use

Model Instruction

Pool &Filter Pump Eco Series

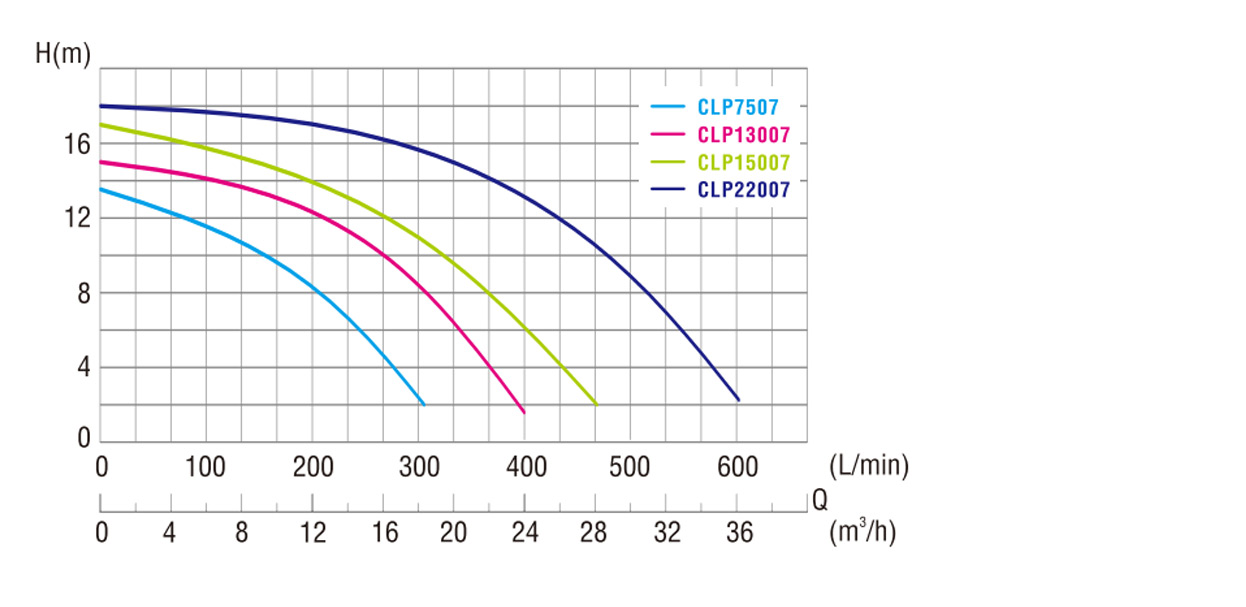

Performance Curves

Performance Data

Model Volts/Hz Input Power Amps Max.Flow Rate Max.Head Connection Pool Size Dimensions Product Weight
CLP7507 230V/50Hz 750W 3.3A 20m³/h 13.5m 2" 2.5" ≈100 m³ L60cm-W27cm-H28.7cm/12.9kg
CLP13007 230V/50Hz 1100W 5.7A 25m³/h 15m 2" 2.5" ≈135 m³ L60cm-W27cm-H28.7cm/14.6kg
CLP15007 230V/50Hz 1500W 6.5A 30m³/h 17m 2" 2.5" ≈170 m³ L60cm-W27cm-H28.7cm/16.7kg
CLP22007 230V/50Hz 2200W 9.6A 38m³/h 18m 2" 2.5" ≈200 m³ L60cm-W27cm-H28.7cm/18.8kg

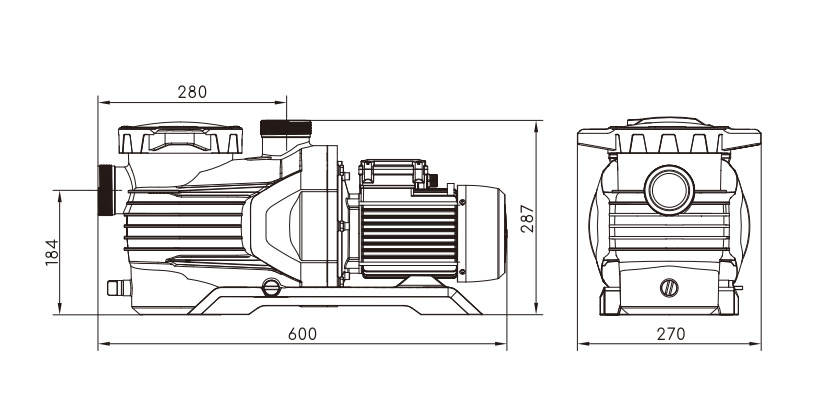

Dimensions Size

Product Brochure
Click to download for more product related information

Download
