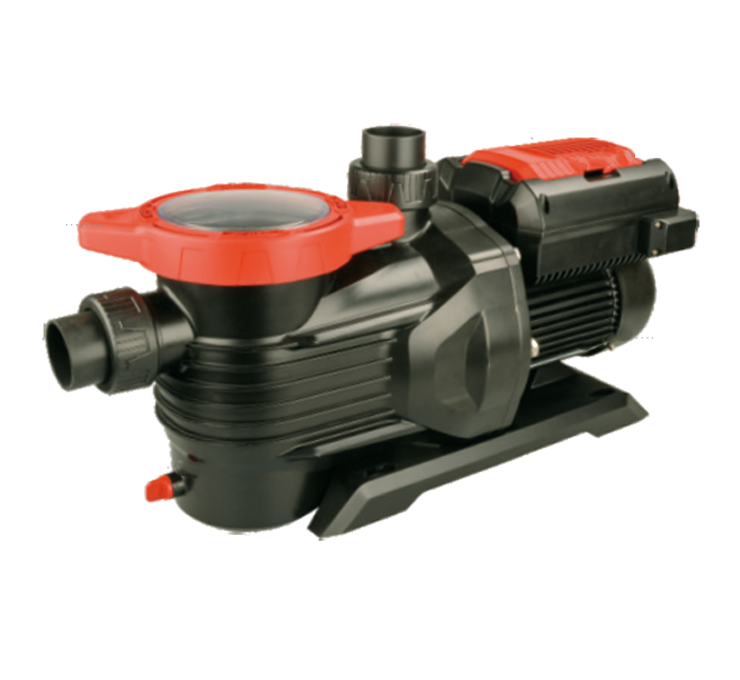

Variable Speed Swimming Pool Pump
Product Application
Suitable for both In-ground and above-ground pools Recycling and filtering water for medium and commercial pools. ldeal for new and standard pool pump replacement

Features

Variable speed series provide users with different flow rate demand.
Super energy saving with high efficiency permanent magnet motor.
4 Adjustbable Power levels-can be set range from 450 RPM to 3650RPM.
Timer function in user-friendly programming lets you pick the best speed for your pool.
Every pump is performance tested before leaving factory.
Variable speed technology for great energy savings up to 90%.
Super quite runing with pre-filter.

Conditions of Use

Model Instruction

Variable Speed Swimming Pool Pump

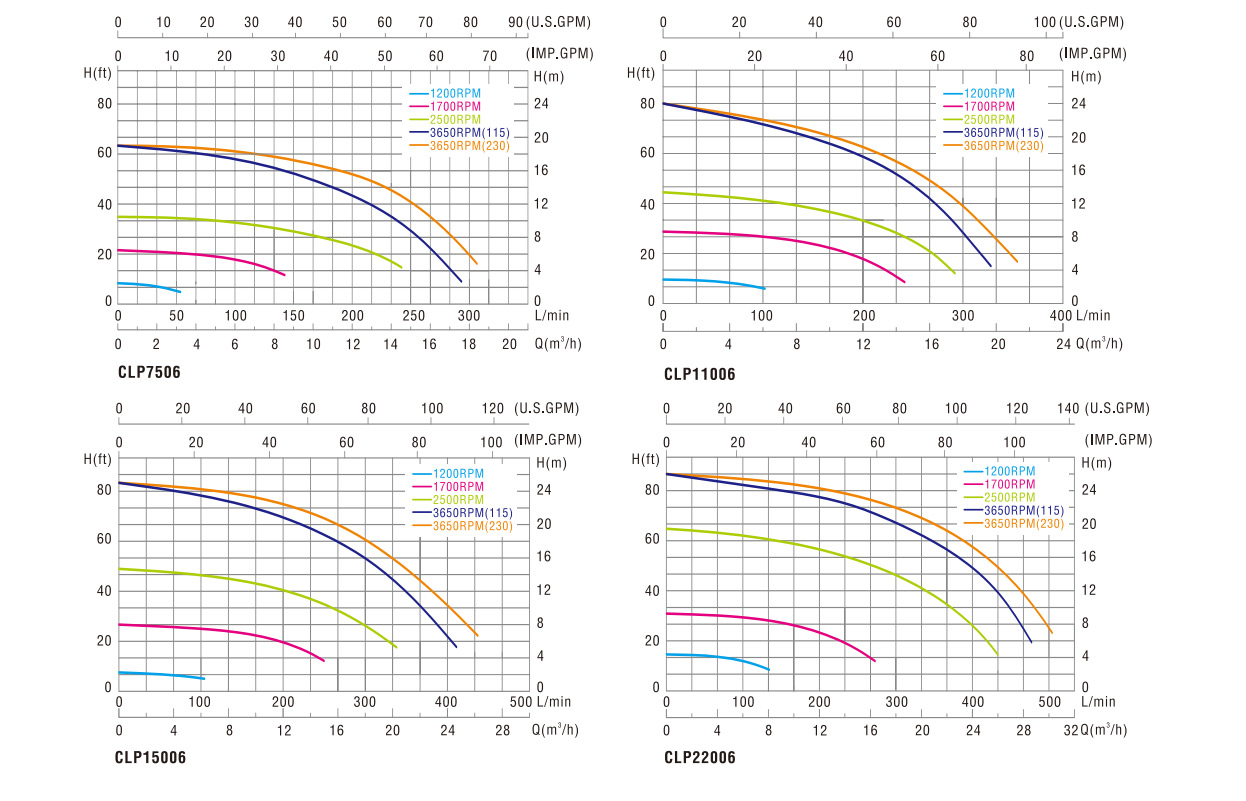

Performance Curves

Performance Data

Model Volts/Hz Input Power Amps Max.Flow Rate Max.Head Connection Pool Size Dimensions Product Weight
CLP7506 230V/50Hz 750W 3.2A 20m³/h 19m 2" 2.5" ≈100 m³ L60cm-W27cm-H29cm/10.7kg
CLP11006 230V/50Hz 1100W 4.8A 23m³/h 24m 2" 2.5" ≈135 m³ L60cm-W27cm-H29cm/11.5kg
CLP15006 230V/50Hz 1500W 6.5A 30m³/h 25m 2" 2.5" ≈170 m³ L60cm-W27cm-H29cm/12.2kg
CLP22006 230V/50Hz 2200W 9.6A 33m³/h 26m 2" 2.5" ≈200 m³ L60cm-W27cm-H29cm/13.8kg

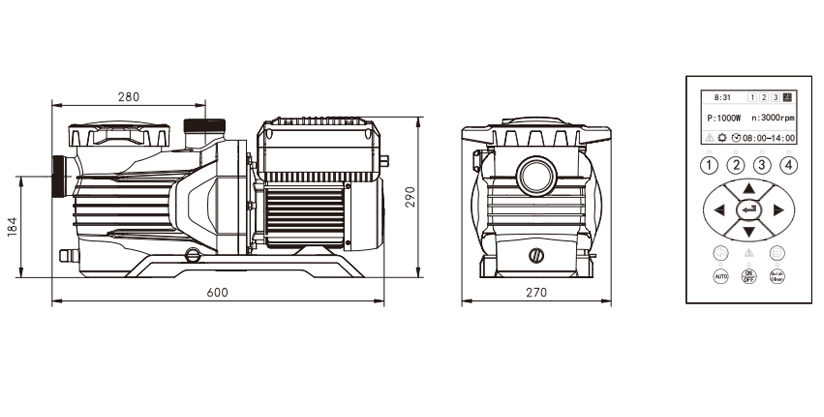

Dimensions Size

Product Brochure
Click to download for more product related information
